Lead pin Wire

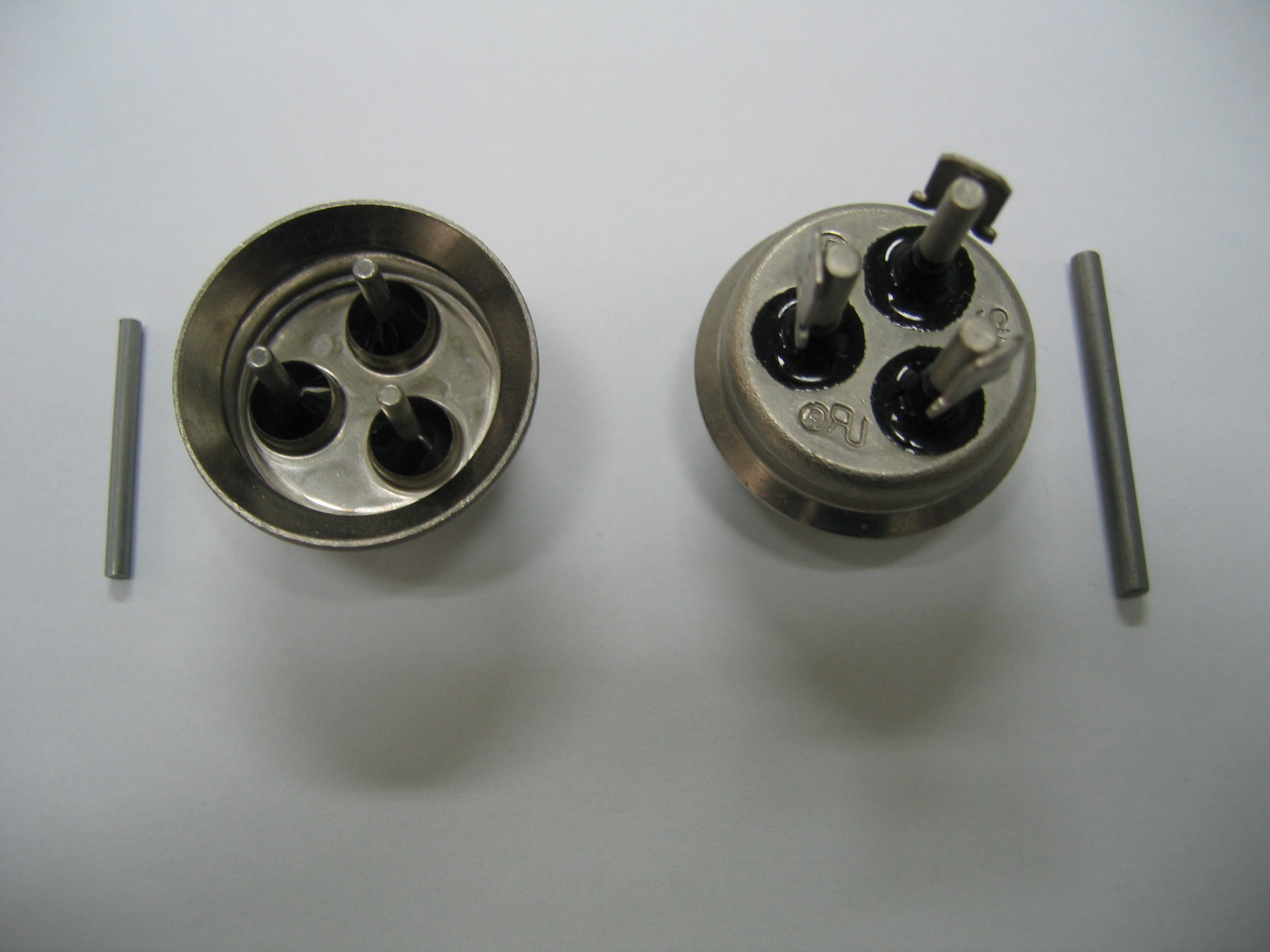

Lead pin wire is produced to get facing the glass and metal and used for terminal pin. The airtight compressor is used for refrigerator and air-conditioner.




    ● Grades and chemical compositions/font>

 (Wt./%)
C Si Mn P S Ni Cr N
Max. 0.2 Max.1.0 Max.1.5 Max.0.04 Max.0.03 Max.0.25 23.0~27.0 Max.0.25

     ● Mechanical properties and packing type
Dia(mm) Tolerance(mm) T/S(N/㎟) Surface Finish Packing Type
1.0~4.0 ± 0.015 Max.1000 Dull or Bright Coil or Carrier
